MAINBOARD (เมนบอร์ด) GIGABYTE B850 AORUS ELITE WIFI7 ICE (REV. 1.0) (AMD SOCKET AM5 DDR5 ATX)

MAINBOARD (เมนบอร์ด) GIGABYTE B850 AORUS ELITE WIFI7 ICE (REV. 1.0) (AMD SOCKET AM5 DDR5 ATX)

รายละเอียดสินค้าโดยย่อ

• Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors
• AMD B850
• DDR5, 4 x DIMM
• 1 x DP
• 1 x Front HDMI
• 3 x M.2
• 4 x SATA3
• 1 x USB 3.2 Gen 2x2 Type-C header (front)
• 1 x USB 3.2 Gen 2 Type-C (rear)
• 2 x USB 3.2 Gen 2 Type-A (rear)
• 5 x USB 3.2 Gen 1 Type-A (rear)
• 2.5GbE LAN
• Wi-Fi 7
• Bluetooth 5.4

MAINBOARD (เมนบอร์ด) GIGABYTE B850 AORUS ELITE WIFI7 ICE (REV. 1.0) (AMD SOCKET AM5 DDR5 ATX)
(#1007000191)

รับประกัน 3 - y
ราคา
บาท
8,650
ส่งฟรี
-
+
ซื้อเลย

0.65%
8 ด.
เดือนละ 1,137.48 .-
0.69%
8 ด.
เดือนละ 1,140.94 .-
0.79%
8 ด.
เดือนละ 1,149.59 .-
คุณสมบัติ
model
Brand
Gigabyte
Model
B850 AORUS ELITE WIFI7 ICE
CPU
Socket

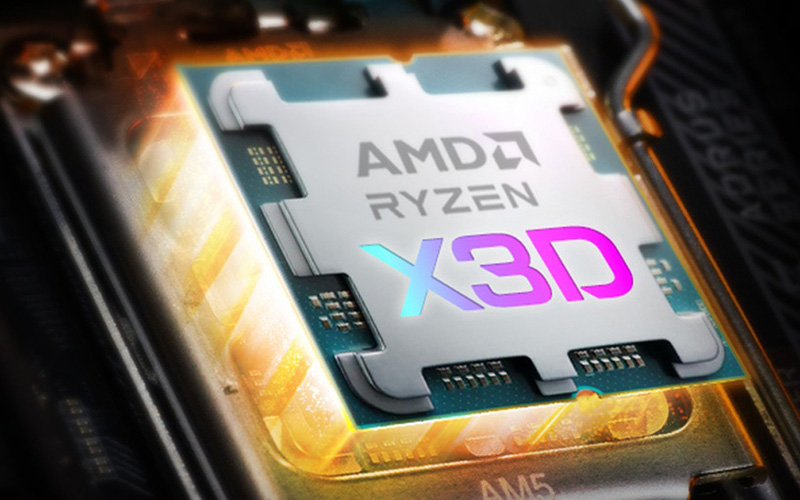

AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge)
Wattage
170W
Chipset
AMD B850
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
256 GB
Speed

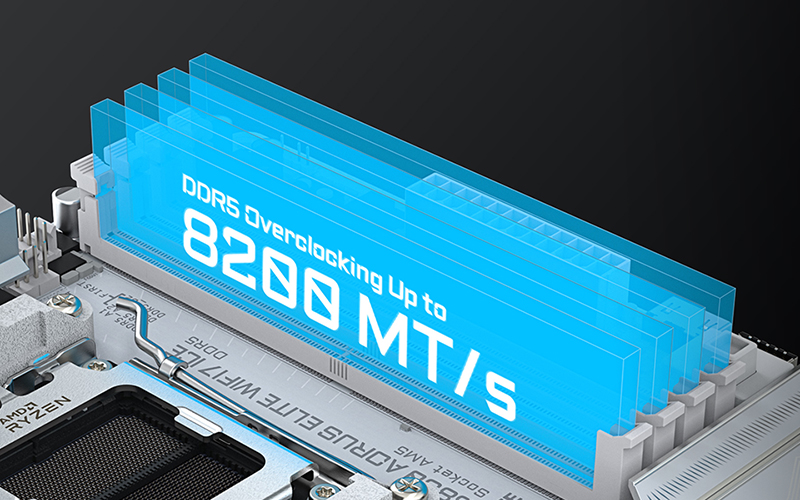

4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC)
Graphic & Audio
Graphic
Integrated Graphics Processor with AMD Radeon Graphics support:
—
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.
—
• 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version
—
(Graphics specifications may vary depending on CPU support.)

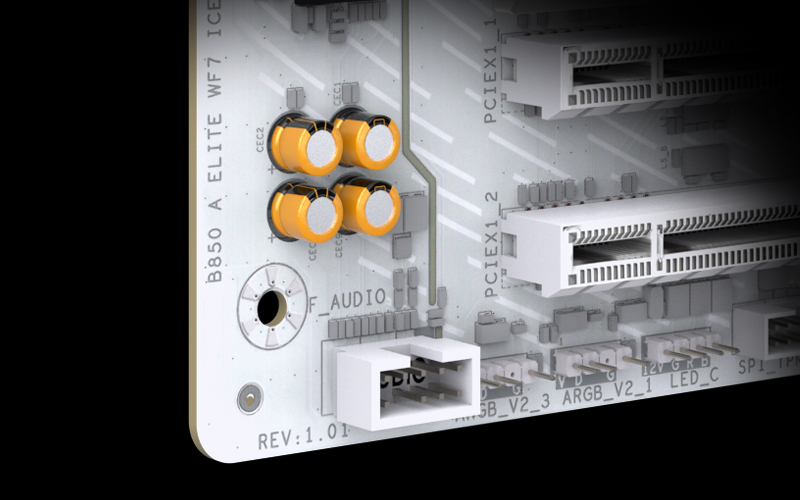

Audio
Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
—
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
M.2
3 x M.2 Connectors
—
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
—
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
—
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs Port
expansion slots
Details
• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
—
Chipset:
• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Slot
1 x PCIe 5.0 x16 Slot , 2 x PCIe 3.0 x16 Slots
network
LAN
Realtek 2.5Gb Ethernet
LAN Speed
100 / 1000 / 2500 Mbps
Wireless
Realtek Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth 5.4
- Support for 11be 160MHz wireless standard
—
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Back Panel I/O Ports
USB 2.0
4 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
1 x USB Type-C port, with USB 3.2 Gen 2
2 x USB 3.2 Gen 2 Type-A (red)
5 x USB 3.2 Gen 1 Type-A Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
- Port
DisplayPort
1 Port
Audio
2 x Audio jacks
1 x Optical S/PDIF out Port
PS/2
No
Additional
1 x Q-Flash Plus button
2 x Antenna connectors (2T2R)
LAN
1 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 4 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

ที่มา : Gigabyte B850 AORUS ELITE WIFI7 ICE
