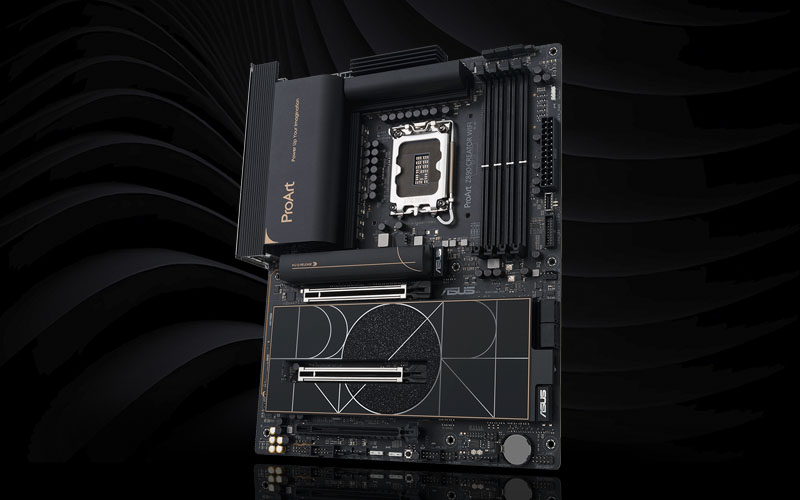

MAINBOARD (เมนบอร์ด) ASUS PROART Z890-CREATOR WIFI (INTEL SOCKET 1851 DDR5 ATX)

MAINBOARD (เมนบอร์ด) ASUS PROART Z890-CREATOR WIFI (INTEL SOCKET 1851 DDR5 ATX)

รายละเอียดสินค้าโดยย่อ

• Socket LGA 1851 for Intel Core Ultra (Series 2) Processors
• Intel Z890
• DDR5, 4 x DIMM
• 1 x HDMI
• 5 x M.2
• 4 x SATA3
• 1 x USB 20Gbps Type-C header (front)
• 2 x Thunderbolt 5 Type-C + video outputs (rear)
• 1 x Thunderbolt 4 Type-C + video outputs (rear)
• 6 x USB 10Gbps Type-A (rear)
• 1 x 10Gb + 1 x 2.5Gb Ethernet
• Wi-Fi 7
• Bluetooth v5.4

MAINBOARD (เมนบอร์ด) ASUS PROART Z890-CREATOR WIFI (INTEL SOCKET 1851 DDR5 ATX)
(#1007000164)

รับประกัน 3 - y
ราคา
บาท
20,900
ราคาล่าสุดเมื่อ 2025-04-23
ส่งฟรี

ระบุข้อมูลใส่ช่องว่างเพื่อแจ้งเตือนเมื่อมีสินค้าเข้ามา

จำนวนที่ต้องการ

ชิ้น

คุณสมบัติ
model
Brand
Asus
Model
ProArt Z890-CREATOR WIFI
CPU
Socket

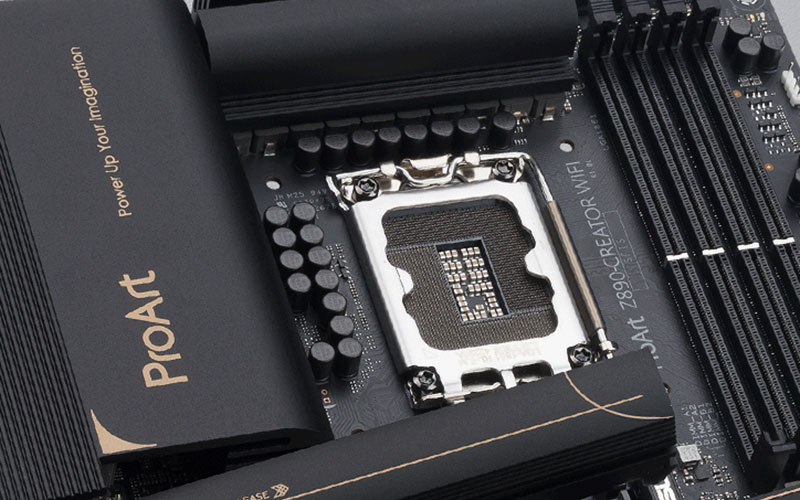

1851 (Arrow Lake)
Wattage
125W
Chipset
Intel Z890
Series
Core Ultra 5 , Core Ultra 7 , Core Ultra 9
memory
Slot
4
Memory Type
DDR5
Max. Capacity
256 GB
Speed

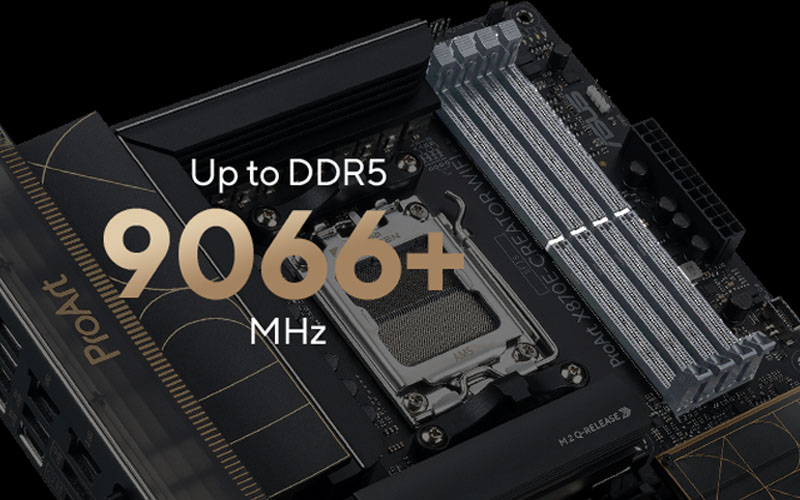

4800 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) , 8400 (OC) , 8600 (OC) , 8800 (OC) , 9000 (OC) , 9066 (OC)
Graphic & Audio
Graphic
• 1 x HDMI port**
• 2 x Intel Thunderbolt 5 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs***
• 1 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs****
—
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.
*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.
*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt cables.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
—
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Storage
SATA 2
- Port
SATA 3
4 Port
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
M.2

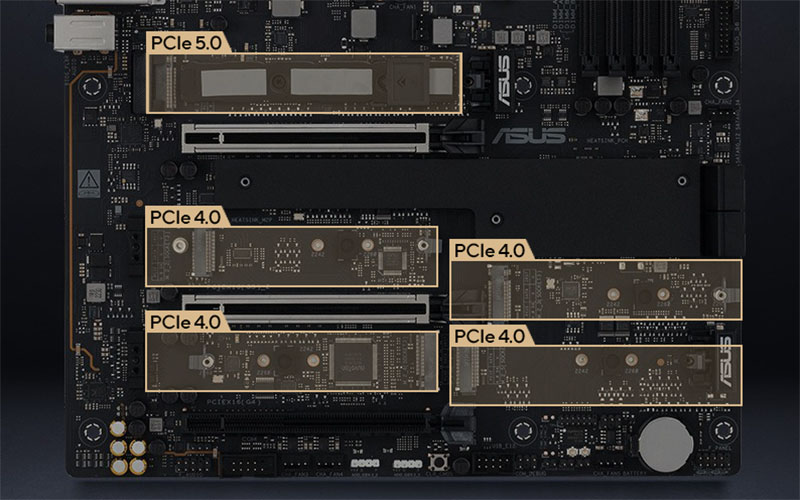

5 x M.2 slots
—
Intel Core Ultra Processors (Series 2) *
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
—
Intel Z890 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled. Port
expansion slots
Details
Intel Core Ultra Processors (Series 2) *
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
—
Intel Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
—
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Slot
1 x PCIe 4.0 x16 Slot , 2 x PCIe 5.0 x16 Slot
network
LAN
1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
LAN Speed
1 x 100 / 1000 / 2500 / 5000 / 10000
1 x 100 / 1000 / 2500 Mbps
Wireless
Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
- Bluetooth v5.4***
—
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

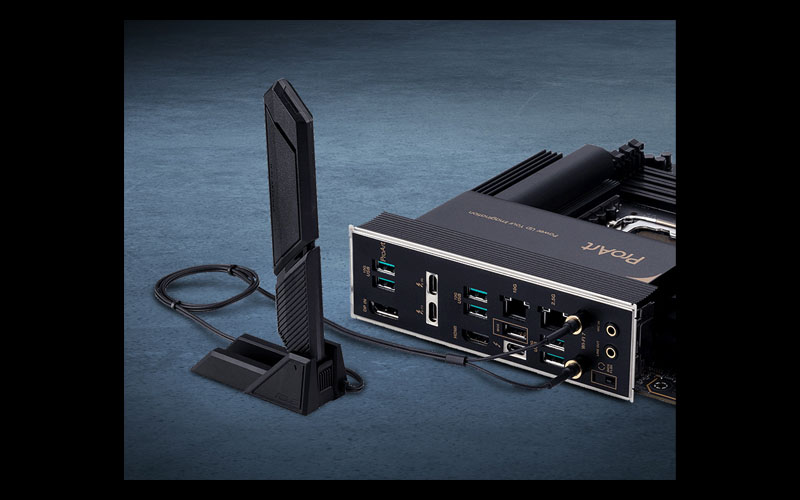

Back Panel I/O Ports
USB 2.0
1 Port
USB 3.0
- Port
USB 3.1
- Port
Serial
- Port
USB 3.2
2 x Thunderbolt 5 USB Type-C
1 x Thunderbolt 4 USB Type-C
6 x USB 10Gbps (6 x Type-A) Port
D-Sub (VGA)
- Port
DVI
- Port
HDMI
1 Port
DisplayPort
1 x DisplayPort (Input only) Port
Audio
2 Port
PS/2
No
Additional
1 x Wi-Fi module
1 x BIOS FlashBack button
LAN
2 Port
Form Factor
Form Factor
ATX
Power Connector
24 + 8 + 8 Pin
Dimension
30.5 x 24.4 cm
warranty
การรับประกัน
3 Years
รายละเอียดสินค้า

ที่มา : Asus ProArt Z890-CREATOR WIFI
