| HARDWARE FEATURES |

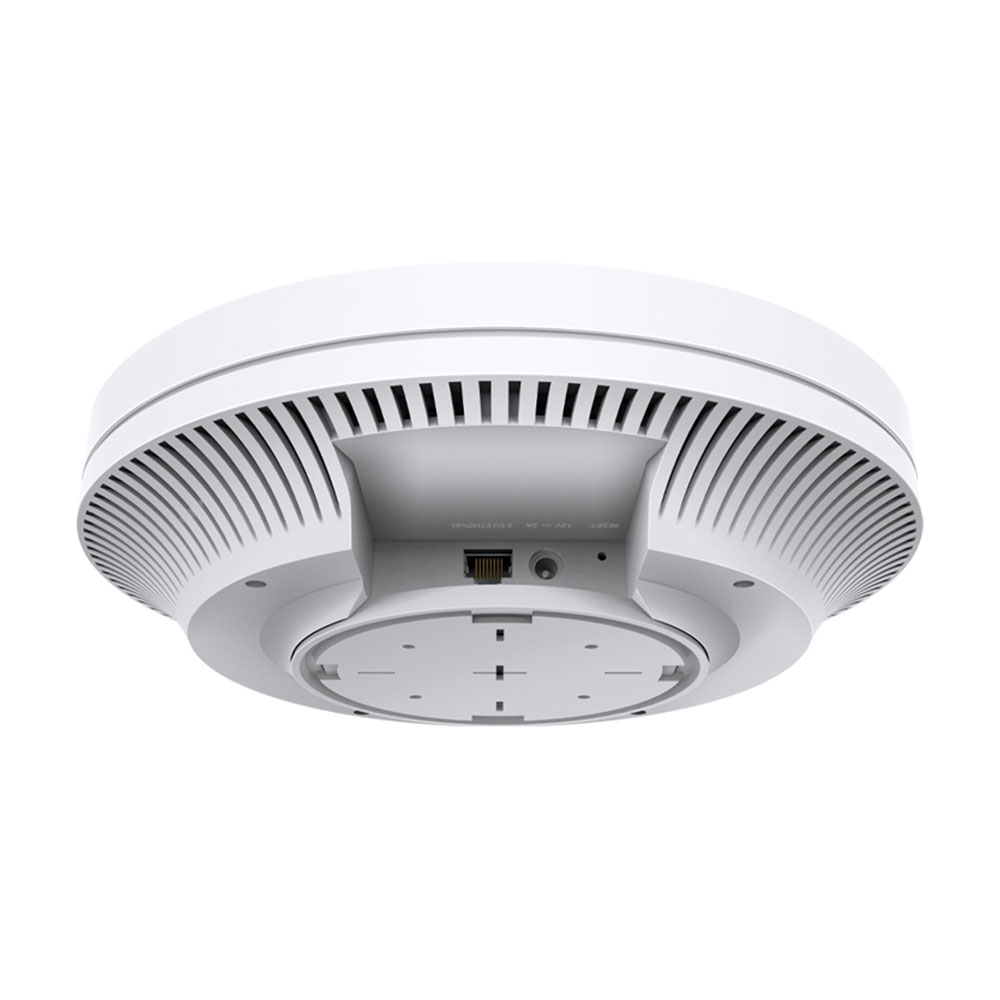

| Interface |
1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Button |
Reset |
| Power Supply |
• 802.3at PoE |
| • 48 V Passive PoE |
| • 12 V / 1.5 A DC |
| Power Consumption |
• EU: 14.4 W (For PoE); 13.1 W (for DC) |
| • US: 14.9 W (For PoE); 13.4 W (for DC) |
| Dimensions ( W x D x H ) |
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type |
Internal Omni Antenna |
| • 2.4 GHz: 2× 4 dBi |
| • 5 GHz: 2× 5 dBi |
| Mounting |
• Ceiling /Wall Mounting (Kits included) |
| • Junction Box Mounting |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 1201 Mbps† |
| • 2.4 GHz: Up to 574 Mbps† |
| Wireless Functions |
• 1024-QAM |
| • 4× Longer OFDM Symbol |
| • OFDMA |
| • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) |
| • Enable/Disable Wireless Radio |
| • Automatic Channel Assignment |
| • Transmit Power Control (Adjust Transmit Power on dBm) |
| • QoS(WMM) |
| • MU-MIMO |
| • Seamless Roaming△ |
| • Omada Mesh△ |
| • Band Steering |
| • Load Balance |
| • Airtime Fairness |
| • Beamforming |
| • Rate Limit |
| • Reboot Schedule |
| • Wireless Schedule |
| • Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication△ |
| • Access Control |
| • Wireless Mac Address Filtering |
| • Wireless Isolation Between Clients |
| • SSID to VLAN Mapping |
| • Rogue AP Detection |
| • 802.1X Support |
| • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE: |
| <20 dBm(2.4 GHz, EIRP) |
| <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) |
| |
| • FCC: |
| <25 dBm (2.4 GHz) |
| <25 dBm (5 GHz) |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| • Omada Hardware Controller OC300 |
| • Omada Hardware Controller OC200 |
| • Omada Software Controller |
| Cloud Access |
Yes, through |
| • OC300 |
| • OC200 |
| • Omada Software Controller |
| • Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• EAP620 HD |
| • Power Adapter |
| • Ceiling / Wall Mounting Kits |
| • Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity: 10–90% RH non-condensing |
| • Storage Humidity: 5–90% RH non-condensing |
