| HARDWARE FEATURES |

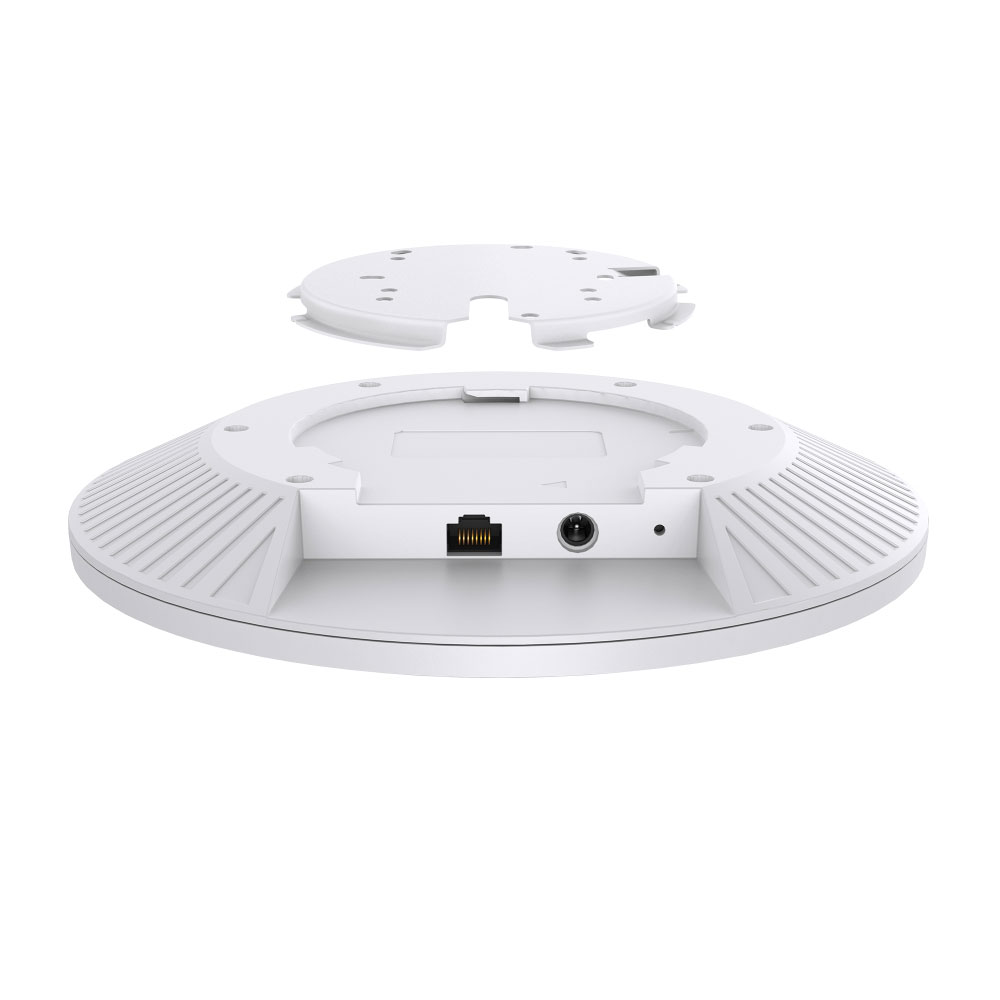

| Interface |
1× 10G Ethernet Port |
| Button |
Reset |
| Power Supply |
802.3bt PoE or 12V/2.5A DC |
| Power Consumption |
Support Smart Power Comsuption Management |
| • 25.94 W (802.3bt, full functionality); |
| • 22.57 W (12/2.5A, full functionality); |
| • 23.4 W (802.3at decrease 6GHz Power); |
| • 10.1 W (802.3af, radio off, only main chip and LAN working) |

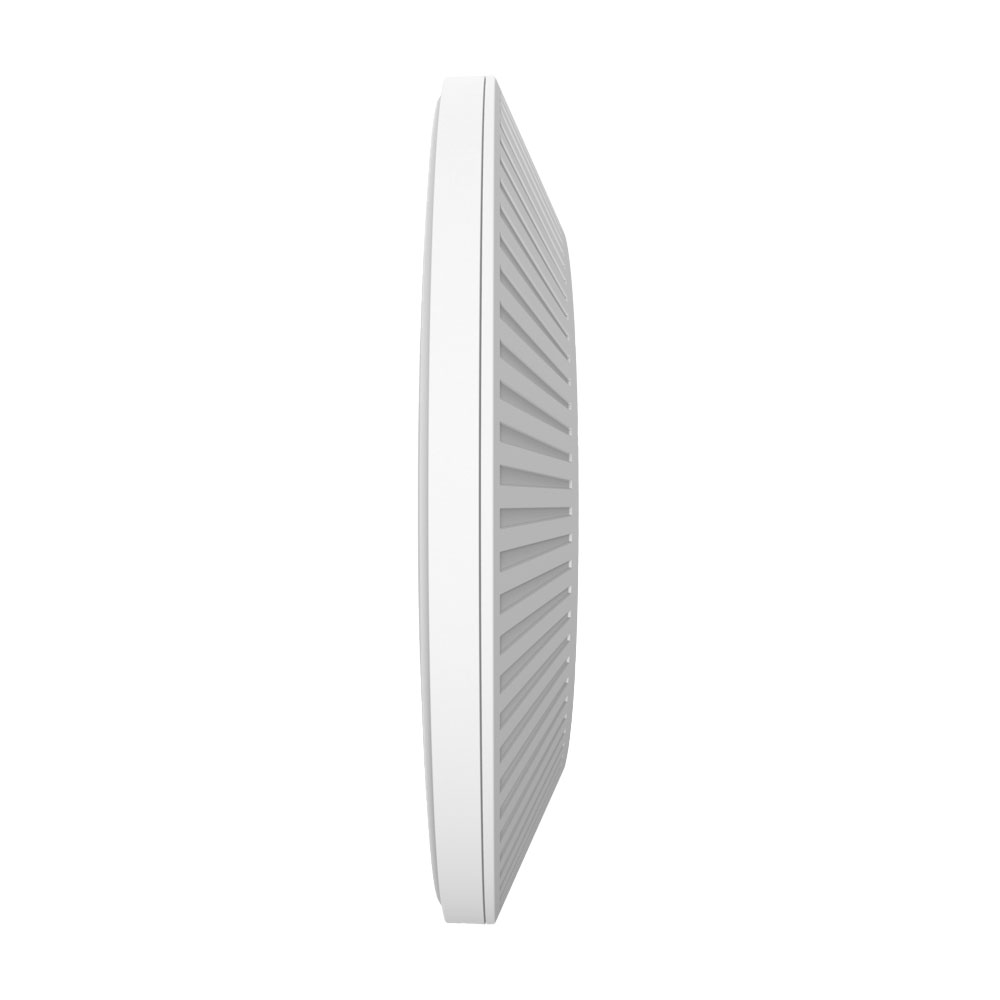

| Dimensions ( W x D x H ) |
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type |
• 2.4 GHz: 2× 3.0 dBi |
| • 5 GHz: 2× 3.0 dBi |
| • 6 GHz: 2× 3.0 dBi |
| Bluetooth |
1 × 4.0 dBi, Bluetooth 5.2 |
| *Firmware update may be required. |
| Mounting |
Ceiling / Wall Mounting (Kits Included) |
| |
|
|
WIRELESS FEATURES
|
| Coverage |
140㎡(1500 ft²)§ |
| Wireless Client Capacity |
2 GHz: 128** |
| 5 GHz: 128** |
| 6 GHz: 128** |
| Concurrent Clients |
380+** |
| Wireless Standards |
IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency |
6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate |
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)† |
| Wireless Functions |
• MLO‡ |
| • 4K-QAM‡ |
| • MU-MIMO‡ |
| • HE320‡ |
| • Mesh△ |
| • BBS Coloring‡ |
| • OFDMA‡ |
| • Load Balance |
| • Band Steering |
| • Beamforming |
| • Airtime Fairness |
| • Multiple SSIDS:24(8 on each band) |
| • Wireless Schedule |
| • Reboot Schedule |
| • QoS(WMM) |
| • Rate Limit |
| • Static IP/Dynamic IP |
| • RADIUS Accounting |
| • MAC Authentication |
| Wireless Security |
• Captive Portal Authentication△ |
| • Access Control |
| • Maximum number of MAC Filter: 4,000 |
| • Wireless Isolation Between Clients |
| • VLAN |
| • Rogue AP Detection |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
< 25 dBm (2.4 GHz) |
| < 25 dBm (5 GHz) |
| < 23 dBm (6 GHz) |
| |
|
|
MANAGEMENT
|
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) |
| • Omada Software Controller |
| Cloud Access |
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Yes |
| Web-based Management |
Yes |
| |
|
|
OTHERS
|
| Certification |
CE, FCC, RoHS, IC |
| Package Contents |
• EAP773 |
| • Installation Guide |
| • Ceiling/Wall Mounting Kits |
| Note: Power Adapter is NOT included. |
| Environment |
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity: 10%–90% non-condensing; |
| • Storage Humidity: 5%–90% non-condensing; |
