| HARDWARE FEATURES |

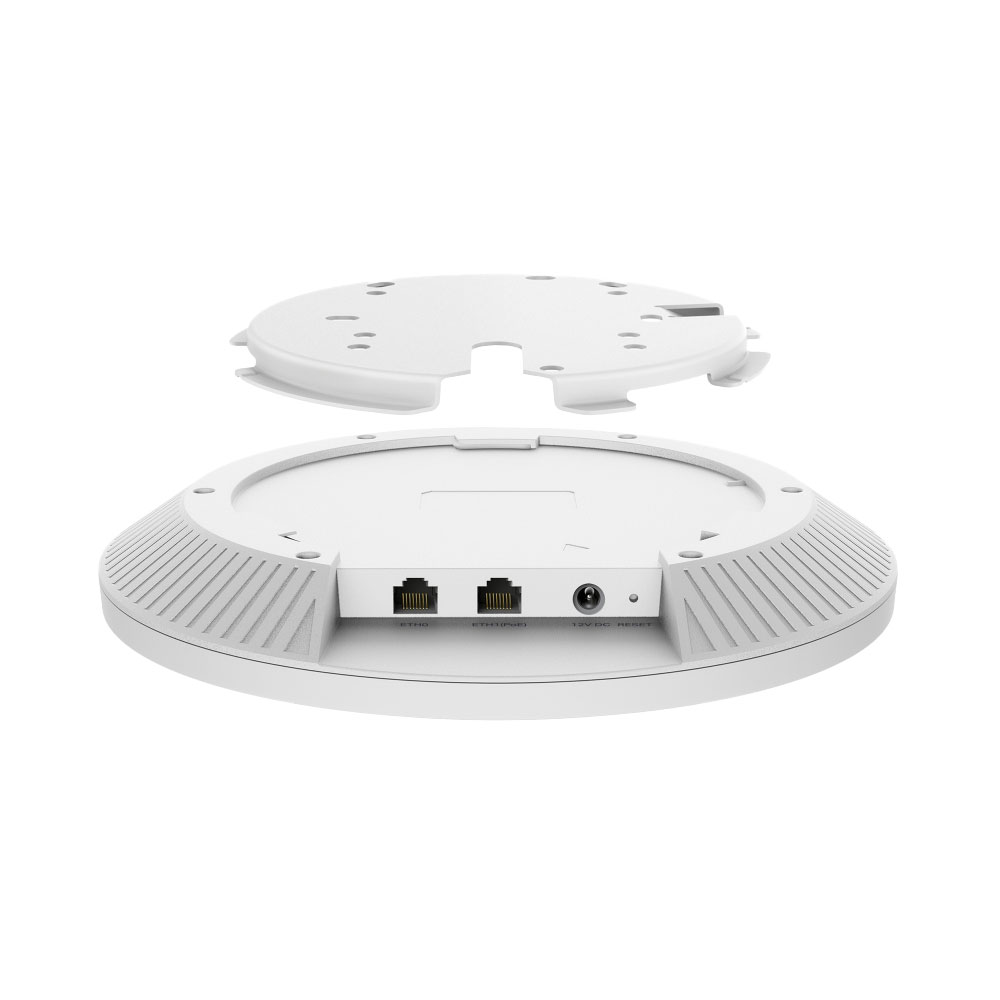

| Interface |
2× 10G Ethernet Port |
| Button |
Reset |
| Power Supply |
• 802.3bt PoE++ |
| • 12V DC |
| |
| Note：Power adapter is not included. |
| Power Consumption |
39W |
| Dimensions ( W x D x H ) |
11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna Type |
Internal Omni |
| • 2.4 GHz: 4× 4 dBi |
| • 5 GHz: 4× 5.5 dBi |
| • 6 GHz: 4× 5 dBi |
| Bluetooth |
Yes |
| Mounting |
Ceiling / Wall Mounting (Kits Included) |
| |
|
|
WIRELESS FEATURES
|
| Coverage |
200㎡ (2150 ft²) § |
| Concurrent Clients |
640** |
| Wireless Standards |
IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency |
6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate |
• 6 GHz: Up to 11520 Mbps |
| • 5 GHz: Up to 8640 Mbps |
| • 2.4 GHz: Up to 1376 Mbps |
| Wireless Functions |
• MLO |
| • 4K-QAM |
| • MU-MIMO |
| • HE320 |
| • Mesh |
| • Automatic Channel Selection and Power Adjustment |
| • BBS Coloring |
| • OFDMA |
| • Load Balance |
| • Band Steering |
| • Beamforming |
| • Airtime Fairness |
| • Multiple SSIDS |
| • Wireless Schedule |
| • Reboot Schedule |
| Wireless Security |
• PPSK |
| • Captive Portal Authentication |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise |
| Transmission Power |
CE: |
| <20 dBm(2.4 GHz, EIRP) |
| <30 dBm(5 GHz, EIRP) |
| |
| FCC: |
| <24 dBm (6 GHz) |
| |
|
|
MANAGEMENT
|
| Omada App |
Yes |
| Restore & Backup |
Yes |
| Firmware update via Web |
Yes |
| NTP |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) |
| • Omada Software Controller |
| Cloud Access |
Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| SSH |
Yes |
| Web-based Management |
Yes |
| |
|
|
GENERAL
|
| Weight |
Net Weight:1384.6g |
| |
|
|
OTHERS
|
| Certification |
CE, FCC, RoHS, IC |
| Package Contents |
• EAP783 |
| • Installation Guide |
| • Ceiling/Wall Mounting Kits |
| Environment |
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity: 10%–90% non-condensing; |
| • Storage Humidity: 5%–90% non-condensing |
